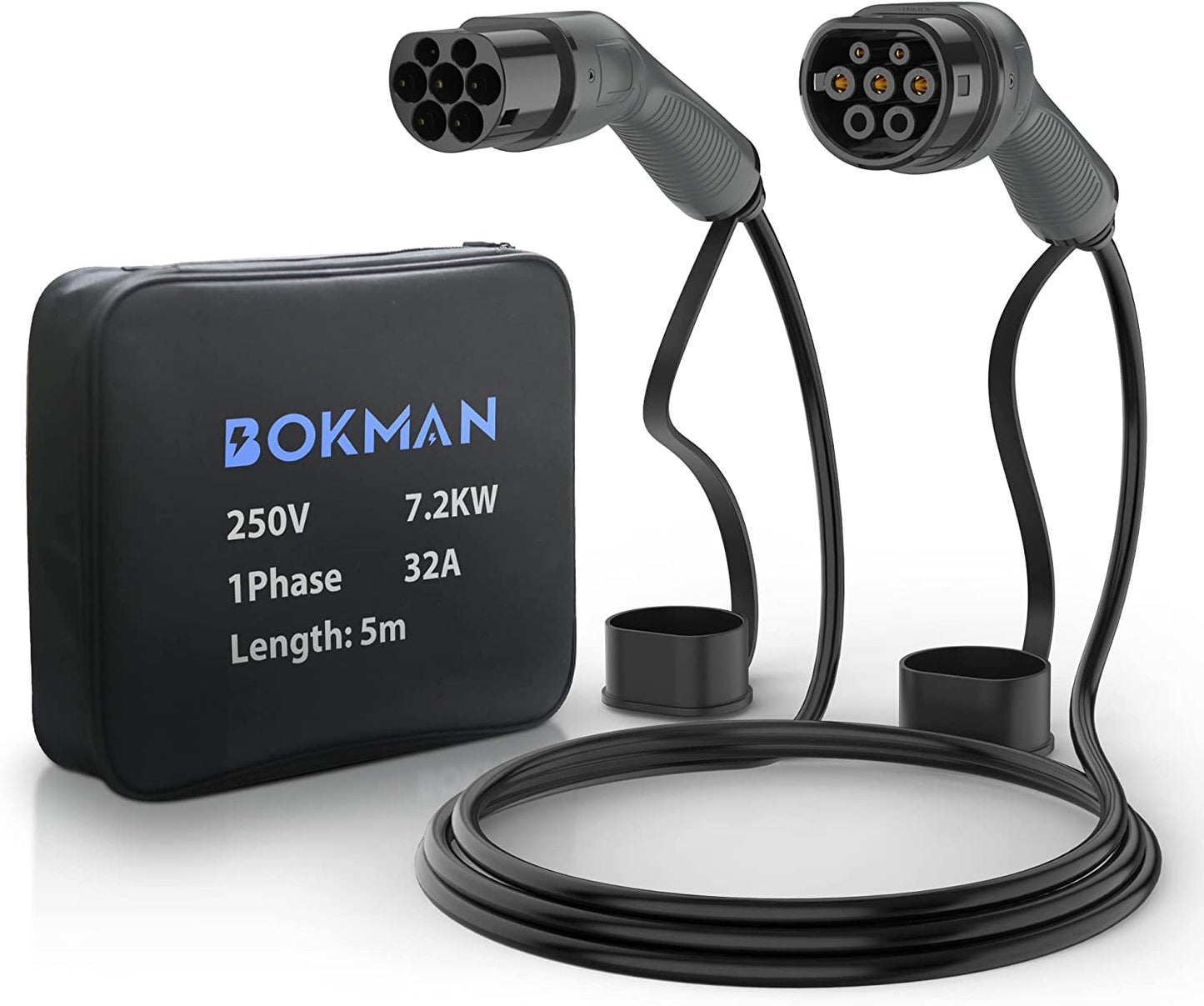

bokman EV Type 2 Charging Cable, Type 2 to Type 2 | 7.2kW | 32A | 5 Meters | Single Phase Electric Vehicle Charging Cable
bokman EV Type 2 Charging Cable, Type 2 to Type 2 | 7.2kW | 32A | 5 Meters | Single Phase Electric Vehicle Charging Cable
【Fast Charging】 - Type 2 to Type 2 32A (7.2kW) 5 Metre Charging Cable provides your vehicle for fast and reliable charging at any public or home charging point and to be ready anytime for your journey.
【Compatibility】 - The EV charging cable is compatible with most BEV and PHEV electric vehicles (IEC62196) on the market with Type 2 cable such as VW e-Up, ID.3, Golf, Tesla Model 3/Y/S/X, Renault Zoe, TwinGo, Smart forTwo /forFour, Hyundai Kona/Ioniq, Skoda Enyaq and many other electric vehicles across Europe.
【Reliable Quality】 - The fast charging cable for electric vehicle is tested to meet CE and TUV Rheinland certification requirements as well as wrapped with TPU jacket to keep robust and flexible even in cold weather.
【Water/Heat Resistant】 - It's safe for leaving your vehicle to charge outside overnight in the condition of -30°C to 50°C with bokman IP54 waterproof and heat-resistant charging cable. (2 YEAR WARRANTY)

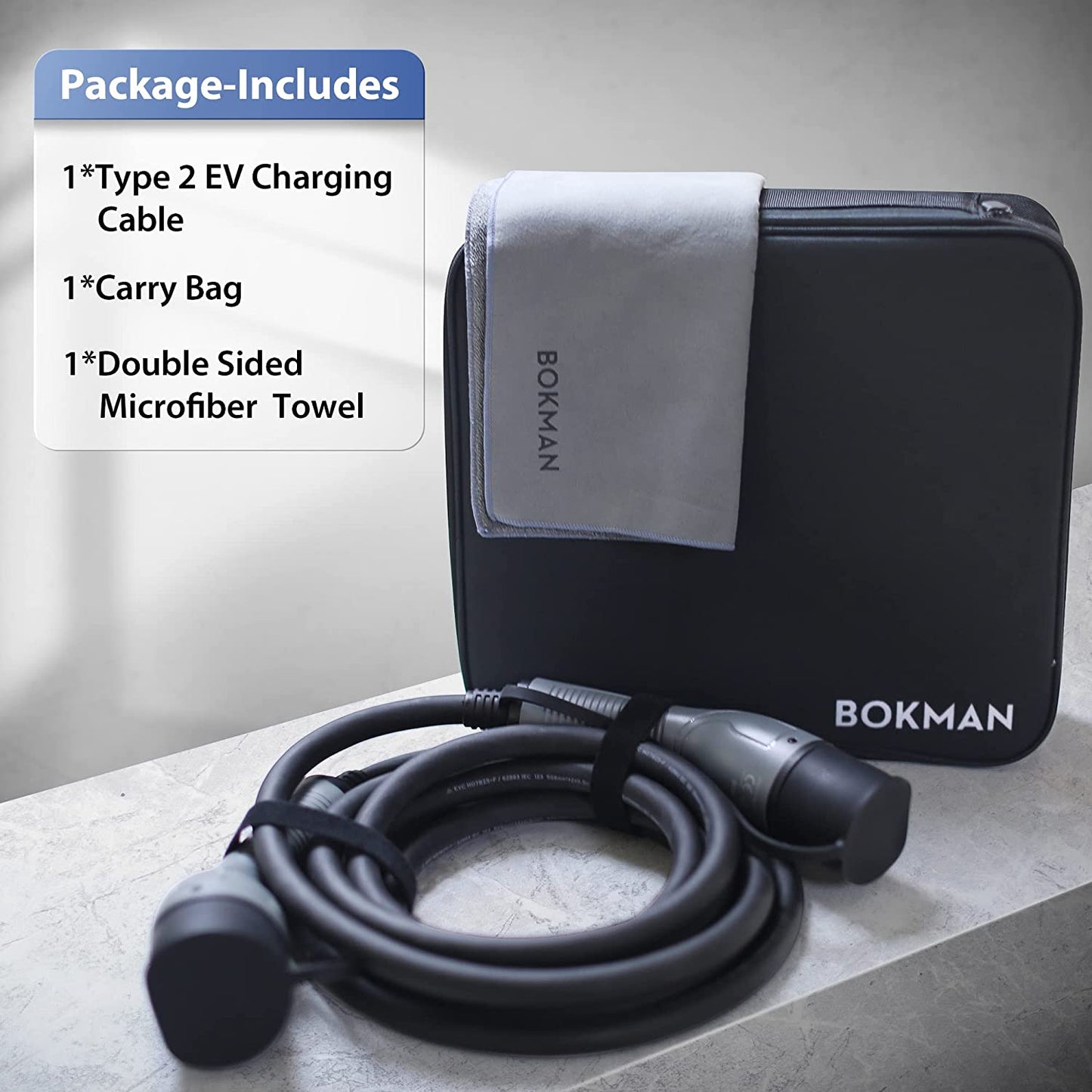

【Carrying Bag & Towel Included】 - A waterproof carrying bag and a microfiber towel are included in the package, which is convenient to store your cable in the trunk and clean your cable.
Easy Charging
- 1.Park the car at the charging point and turn off the engine.

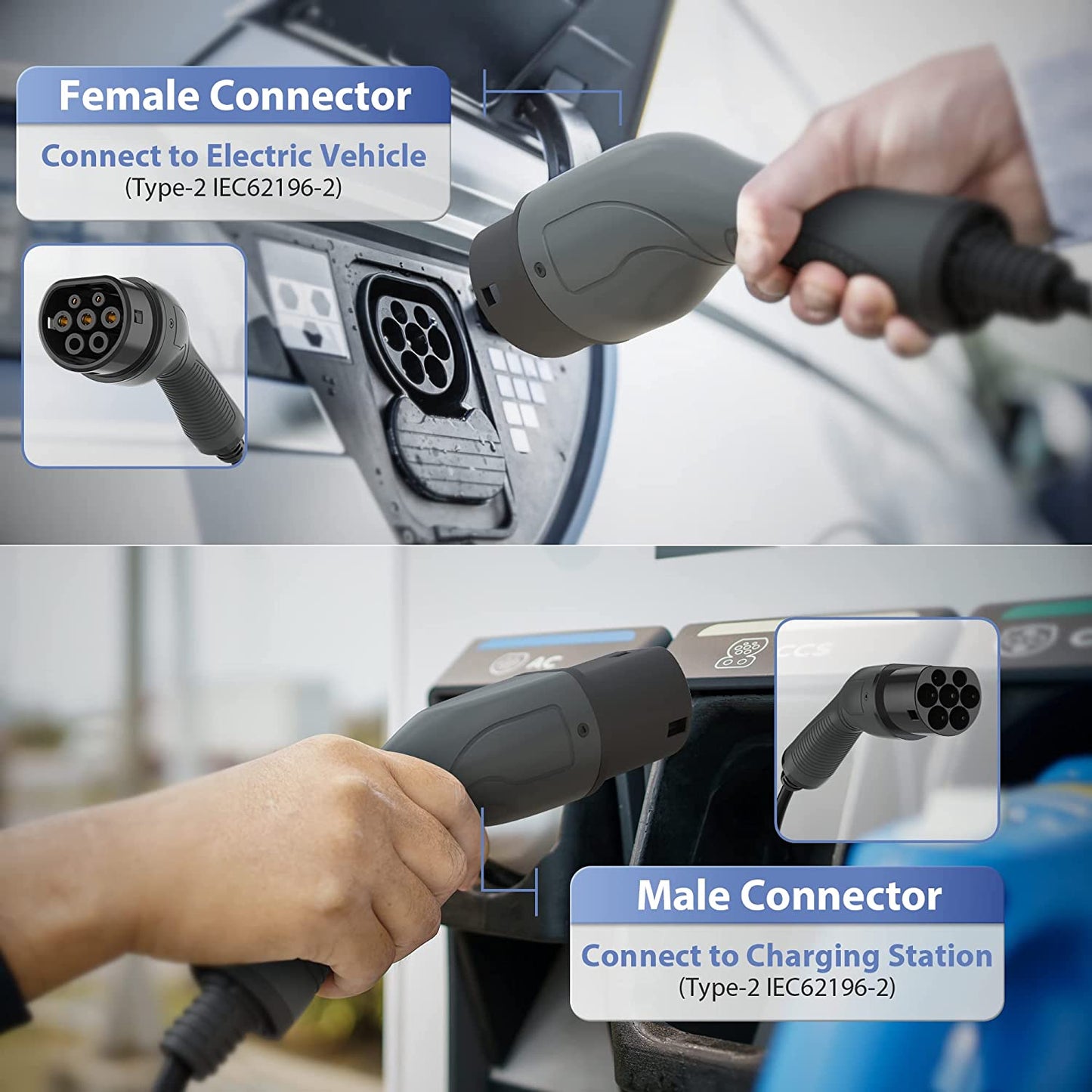

- 2.Insert the Type 2 male plug into the charging point's socket firmly to make the pins can fully locked.
- 3.Insert the Type 2 female plug into your car’s socket firmly too.
- 4.Lock your car and the cable if the car supports.
- 5.After charging is complete, remove the plug from the car firstly and then remove the male plug from the charging unit.
Common Charging Problems
- Charge settings on car - Make sure you have no timers or other settings turned on.
- Car is locked - the car needs to be unlocked and turned off to start the charging process.
- Pins not latching - Make sure to use considerable force when plugging in the cable and wiggle until the pins make a full strong connection.
- Plugging into another cable - This cable must plug directly into a Type 2 socket
Technical Data
Fire Retardant Level | UL94 V-0 |
Insulation Resistance | > 1000M ohm (DC 500V) |
Terminal Temperature Rise | <50K |
Withstand Voltage | 2000V |
Contact Resistance | 0.5m ohm Max |
Coupled Insertion Force | >45N <80N |
Operating Temperature | -35℃ to 50℃ |
Mechanical Life | > 10000 times |
Impact of External Force | Qualify 1M drop or 2 Ton vehicle run over |
